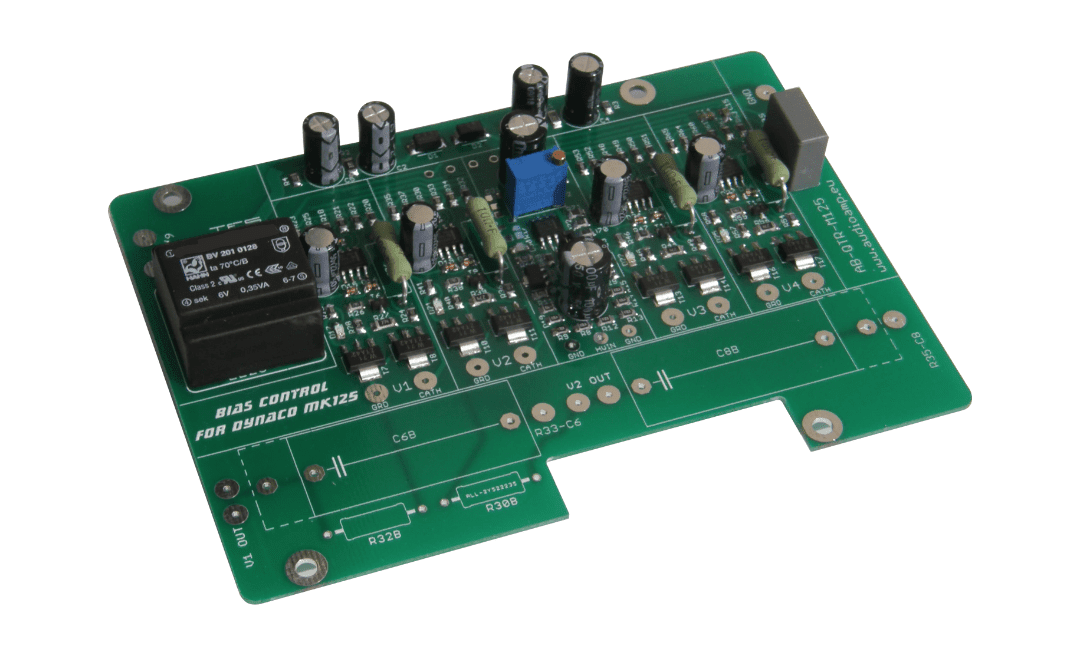

The model AB-Qi-M125 auto bias module is designed to fit the Bob Latino M125 mono block power amp. This module is also suitable for the Dynaco MK3 mono block.
It comes with a 1:1 isolation transformer so that the module can safely use one of the PA-060 power transformer 6.3VAC filament windings for its power.
The AB-Qi-M125 dynamically controls the bias in four tubes for the M125 or two tubes for the Dynaco MK3.
The module automatically optimizes the bias settings and maintains a strict symmetry of currents through both tube branches in the output stage. It will also stop any DC current flowing through the output transformers, all with the minimum of current loading on the anode of a tube.
DC current saturates an output transformer which results in increased low frequency distortions.
The bias level is kept at the preset value irrespective of the input signal.
This module has a 1:1 12V isolation transformer for the 6.3VAC supply, making it suitable to use in an amp where the 6.3VAC filament supply is referenced to ground!
– PCB dimensions are 100mm x 57mm / 4″ x 2.25″
– Suitable for Cathode Feedback amps
– power supply requirement is 6.3VAC from one of the PA-060 filament windings
– negative DC bias supply between -55V to -90V
Price for one AB-Qi-M125 module: US$85.00 in stock
Shipping of $11.00 for the lower 48 will be added when you click on the PayPal button.
For shipping outside the lower 48, please contact us first, thank you.
NOTE: The price of $85.00 DOES NOT inlcude any mounting hardware, the two extra coupling capacitors and two resistors required for the M125. These are not required for the Dynaco MK3!
