Dyna-70 / Dyna-120 Choke – Smoothing Filter

$21.95$37.95

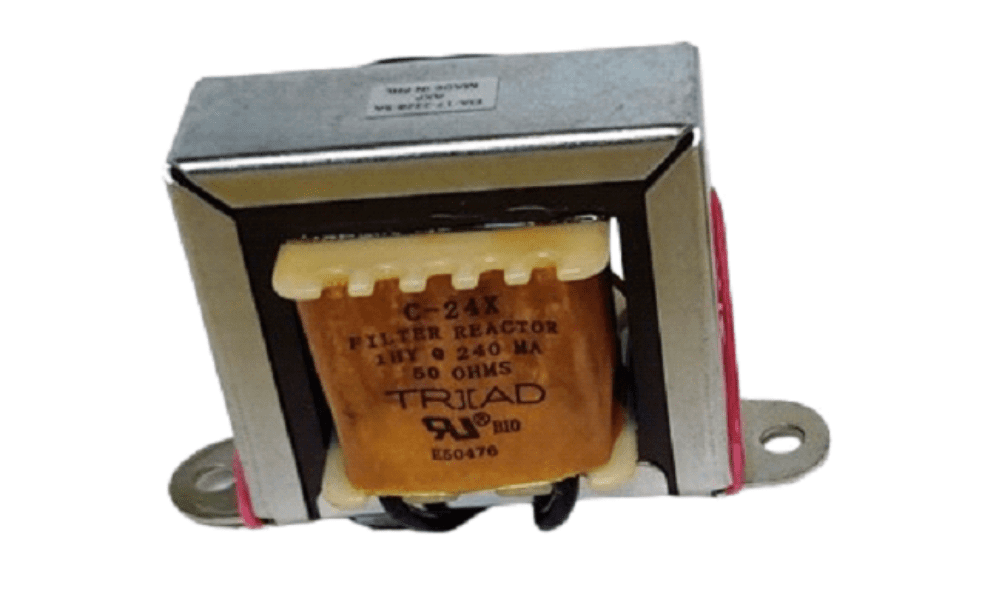

Triad C-24X DC Choke / Smoothing Filter Specifications:
Low-Cost alternative to the C-354; performs well in the Dyna Ultimate Upgrade;
Inductance*: 1.00 Henry
Max. Current Capacity: 240mA DC
Resistance: 50 ohm
Max. Operating Voltage: 400 vdc
Specification Tolerance: -20%/+50%*
Price: 21.95

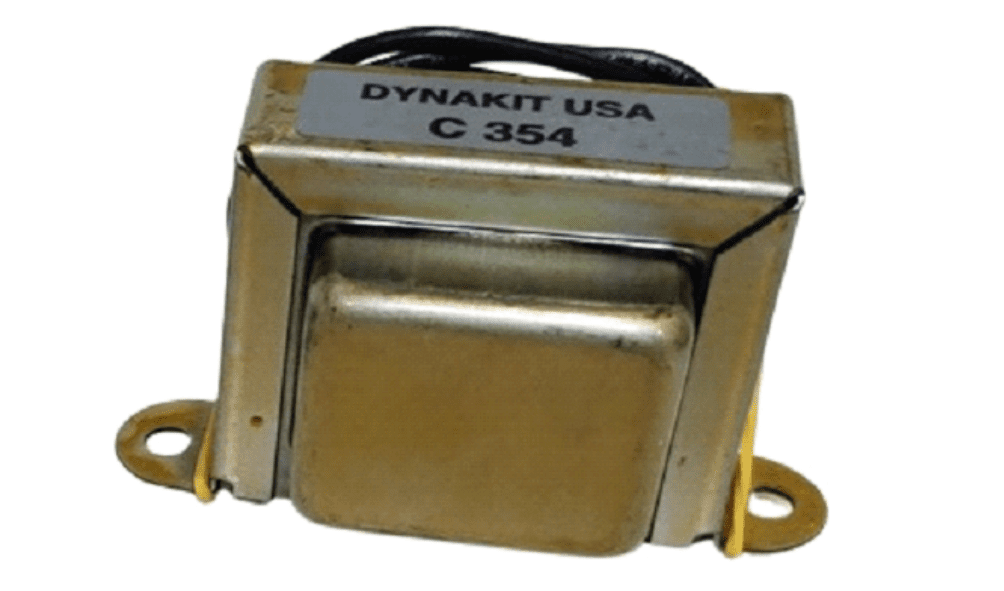

Original Dynaco C-354 DC Choke / Smoothing Filter Specifications:
Features enclosed bell ends for lower RF/EMI noise;
Inductance: 1.75 Henry
Max. Current Capacity: 200mA DC
Resistance: 62 ohm
Max. Operating Voltage: 400 vdc
Specification Tolerance: 10% +/-
Price: $37.95



Note 1: Both Chokes are drop-in replacements for Dynaco ST-70, Mark III & Mark IV mono block amplifiers.
Note 2: The Dyna-70 requires one Choke; The Dyna-120 requires two Chokes.
Note 3: Mounting Information-  C_24X-1892581.pdf
